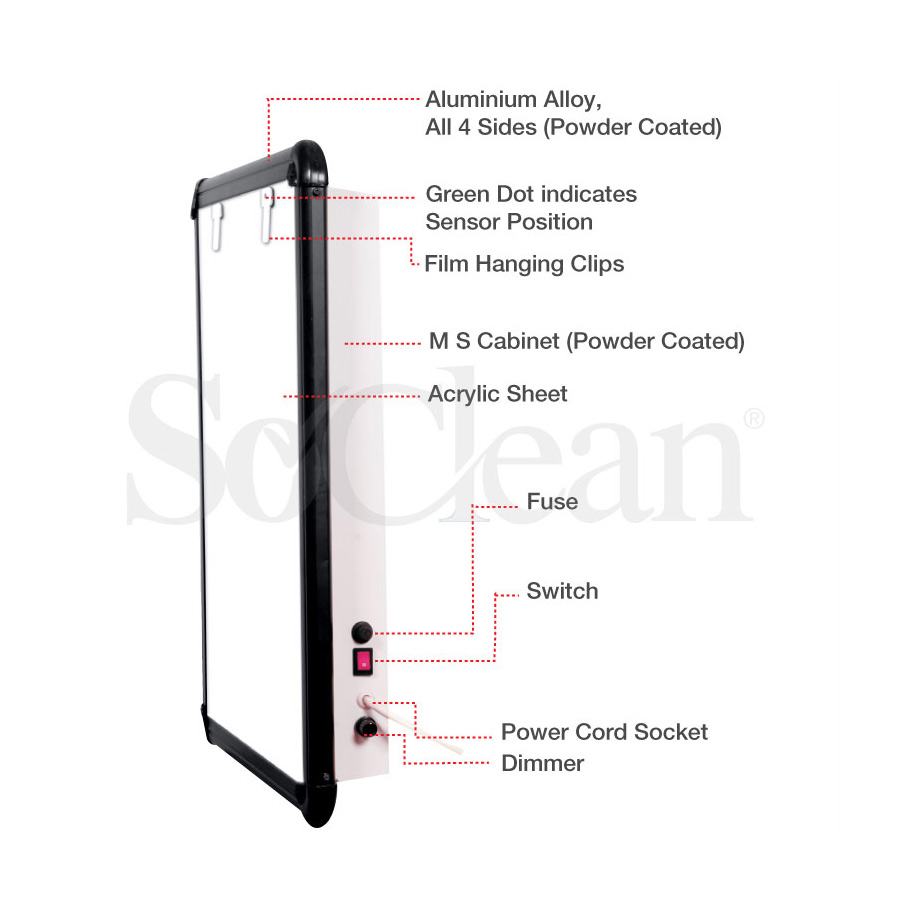

LED X-Ray View Box (Economy)

• X-Ray viewer with a thickness of 70mm (less than 3 inches)
• High brightness of upto 3000 Lux, exclusive for viewing detail image freely
• Excellent uniformity of luminance which is more than 85%
• Adopt LED light source with life of 100,000 hours
• Free from flickering, hence reduced eye-fatigue
• Film hanging clips are made from the best quality of unbreakable plastic
• Inbuilt power supply
• Wall mounted.
• 2 years off-site warranty
• Please ask for Customization for modular Operation Theatre

70 mm Thickness

 Parameters

	Single Film	Double Film
Sensor Dimmer
View Area (inches L x H)	14 x 17”	28 x 17”
External Dimension (MM) L X H X T	423 x 515 x 70 (MM)	773 x 515 x 70 (MM)
Light Source	LED	LED
Colour Temp.	6000-6500K	6000-6500K
Brightness	UPTO 3000 LUX	UPTO 3000 LUX
LED Life	100,000 Hours	100,000 Hours
Power	AC 100-270V (47-53 HZ)	AC 100-270V (47-53 HZ)
Power Supply	10W	20W

• Both sizes comes with dimmer (intensity controller) and film sensor (Auto Switch)
• Single Film 1 Dimmer and 1 Sensor
• Double Film 2 Dimmers and 2 Sensors
